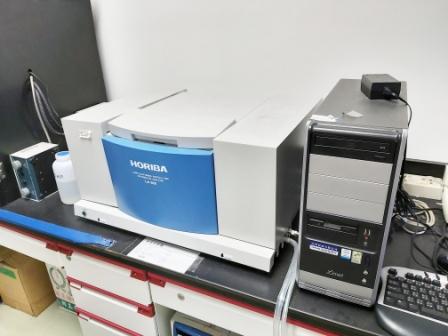

粒徑分析儀

價格：$380,000.-

製造商：HORIBA

型號：LA-920

數量：一台

地點：桃園平鎮

製造日期：2005

規格：

1.Measurement principle: Mie scattering theory

2.Particle diameter: 0.02µm ~ 2000µm

3.Measurement time: 20 seconds under normal conditions (from commencement of analysis to display of result)

4.Measurement method: manual flow cell measurement, manual batch cell measurement (requires optional unit LY-203), automatically adjusting sample density measurement (requires Reservoir Unit LY-201), and auto-sampling measurement (requires automatic dilution unit LY-201 and Auto Sampler LY-203).

5.Materials measured: ferrous metals, nonferrous metals, electronic materials, etc.

6.Required sample volume: 0mg-5g (in flow cell measurement, appropriate volume differs depending on sample)

7.Dispersion medium: 200 ml (when using flow cell)

8.Measuring volume: Optics/light source: He-Ne laser (632.8 nm) 1mW, 50W tungsten lamp

Detectors: 1 silicon photo diode divided into 75 sections on the ring detector, with 12 additional silicon hot diodes. A 30W, 22.5 KHZ (ultrahigh frequency probe) Circulation/scattered ultrahigh frequency bus enables multilevel settings on the centrifugal pump (2nm cloudburst circulation is possible). With water, flow cell Tempax glass.

9.Operating temperature and humidity: 5°C-35°C, 85% RH or less (but below the dew point)

10.Electrical Current: AC100/120/220/240V, 50/50Hz, 500VA

11.Dimensions: 690 (W) x 525 (D) x 355 (H) mm

12.Weight: 60 Kg

13.Data processing and instrument control: PC: Japanese Windows 95 compatible IBM PC/AT type machine Printer: Japanese Windows 95-compatible Monitor: Japanese Windows 95 compatible.
